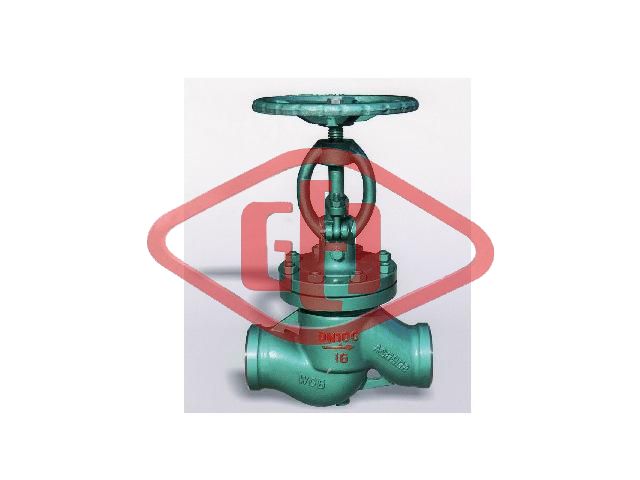

Products Name: Vacuum insulation Globe valve

Product Catalog: Globe Valve

OnLine Service:

Print this Page	Bookmark this
Skype Online	E-mail Us
Live Messenger	PDF Download

【Prev Products】	【Next Products】

Description	Send Inquiry

Product quotation standard：

design and production：JB/T3595
construction length：GB/T15188.1
Pressure temperature rank：GB/T3595
testing and inspection：GB13927 JB/T9092

Product use：

vacuum isolates Globe valve is suitable for Nominal Pressure PN4.0~10.0Mpa, Operating temperature ≤200℃ on thermal power station backwater condenser system channel, in cut-off or connection agent. Is suitable the medium is: Water, steam and so on.

Product mix characteristic：

1.Product according to JB/The T3595 standard design manufacture, satisfies the power plant equipment necessary operation requirements。
2.Designed the vacuum seal structure padding room, the isolation vacuum has been reliable.
3.Stem after the quenching and tempering and the surface nitriding, has the good corrosion resistivity, anti-abrasion and resistance to wear.
4.The flange filling piece uses the compound materials, the expansion coefficient is big, the aeroseal performance is good, guaranteed the system and the atmosphere isolate reliably.
5.Pours seals uses the stainless steel screw joint seal place or the main body built-up welding austenite stainless steel becomes, pours seals reliably. The padding replacement and the service may not carry on in the engine off situation, facilitates does not affect the system movement quickly.

Major parts material explanation：

Product type	Sheli strangth test	Back seal test	Seal test	Applicable medium	Applicable temperature
NKJ61H-40	6.0	4.4	4.4	Water、Steam、Air	≤425
NKJ61H-64	96	7.0	7.O
NKJ61H-100	15.0	11.0	11.O
NKJ61Y-40l	6.0	4.4	4.4	Water、Steam、Air	≤550
NKJ61Y-64l	9.6	7.0	7.O
NKJ61Y-1OOI	15.0	11.0	11.O

Material for Main Parts

Part name	Body Bonnet	Valve Stem	Disc	Sealing face	Yokenut	Packing	Fasteher
NKJ61H-C型	25 OR WCB	Crstain mless teel	Crstain mless steel	H：alloy steel	AI bronze	Expanding compound graphlte	High-grade carbon steel
NKJ61Y-l型	Cr.Mo steel	20CrlM01vA OR 38CrMoAlA	12CrlMo 1VA	Y:oarbide alloy	AI bronze	Expanding compound graphlte	Cr.Mo steel

Main dimensions and weight

DN/mm Nominal diameter	PN/MPa Nominal pressure	Main extemal and connectingd mensions
DN/mm Nominal diameter	PN/MPa Nominal pressure	L	H	D	D0	D1	L1	α	W
1O	4.0	130	245	36	11	18.4	10	-	120
15		130	245	36	16	22.5	10	-	120
20		150	265	44	21	28.5	11	-	160
25		160	270	48	26	34.5	12	-	200
32		180	285	48	34	-	-	37°30′	200
40		200	320	55	40	-	-	37°30′	240
50		230	365	64	48	-	-	37°30′	320
65		290	41O	82	66	-	-	37°30′	300
80		31O	430	95	78	-	-	37°30′	300
100		350	470	117	100	-	-	37°30′	350
125		400	500	143	126	-	-	37°30′	350
150		480	533	167	150	-	-	37°30′	400
10	6.4	130	245	36	10	18.4	10	-	120
15		130	245	36	15	22.5	10	-	120
20		150	265	44	20	28.5	11	-	160
25		160	270	48	25	34.5	12	-	200
32		180	280	48	33	-	-	37°30′	200
40		200	320	55	39	-	-	37°30′	240
50		230	365	64	48	-	-	37°30′	320
65		290	410	82	65	-	-	37°30′	320
80		310	430	95	76	-	-	37°30′	360
100		350	470	117	98	-	-	37°30′	400
125		480	500	143	123	-	-	37°30′	400
150		480	533	167	148	-	-	37°30′	500
10	10.0	130	245	36	10	18.4	10	-	120
15		130	245	36	14	22.5	10	-	120
20		150	265	44	20	28.5	11	-	160
25		160	270	48	25	34.5	12	-	200
32		180	285	48	32	-	-	37°30′	200
40		200	320	55	38	-	-	37°30′	240
50		230	355	64	48	-	-	37°30′	320
65		290	410	82	63	-	-	37°30′	320
80		310	430	95	74	-	-	37°30′	360
100		350	470	117	97	-	-	37°30′	400
125		400	500	143	123	-	-	37°30′	400
150		480	533	167	148	-	-	37°30′	500
