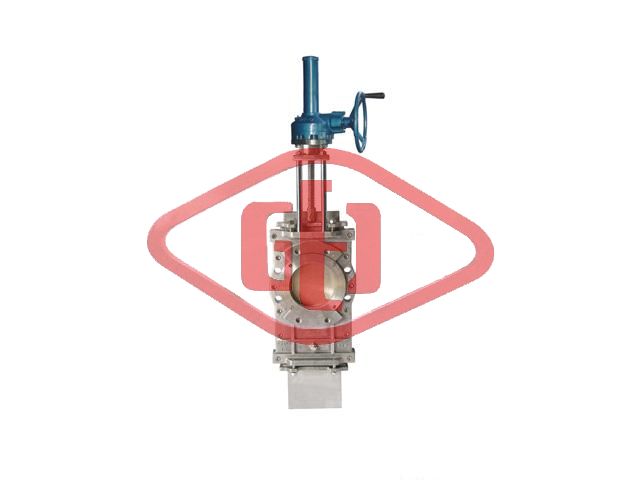

The actuators can be electric,pneumatic,manual or bevel gaer actuators.Air filters,electromeagnetic valves,sensors can be installed on pneumatic actuators,if those actuators,acessories of pneurnatic actuators above shall be install,please specified in contracts.
Materials and coupling sizes of main parts
|
Part name |
Material |
Part name |
Material |
|
Body |
1CF18Ni9Ti CF8M |
Stem |
1CF18Ni9Ti |
|
Seat seal ring |
Rubber or PTFE |
Bracket |
stainless steel |
|
Seal cushion |
Rubber or PTFE |
Stuffing pressure cover |
stainless steel |
|
Gate |
1CF13Ni9Ti CF3M |
Stuffing |
Graphite or PTFE |
|
Body coupling bolt |
B7 |
Stuffing pressure cover bolt |
B7 |
|
ON |
L |
Central round Diameter D1 |
H |
H2 |
N-M |
Cylinder diameter |
|
|
PN0.6 |
PN1.0 |
||||||
|
50 |
40 |
|
125 |
397 |
51 |
4-M16 |
50 |
|
65 |
40 |
|
145 |
418 |
67 |
4-M16 |
65 |
|
80 |
50 |
|
160 |
579 |
82 |
4-M16 |
80 |
|
100 |
50 |
|
180 |
612 |
102 |
8-M19 |
100 |
|
125 |
50 |
|
210 |
710 |
127 |
8-M16 |
125 |
|
150 |
60 |
|
240 |
816 |
152 |
8-M20 |
150 |
|
200 |
60 |
|
295 |
990 |
202 |
8-M20 |
200 |
|
250 |
70 |
|
350 |
1106 |
253 |
12-M20 |
250 |
|
300 |
70 |
70 |
400 |
1264 |
303 |
12-M20 |
300 |
|
350 |
80 |
80 |
460 |
1575 |
353 |
16-M20 |
350 |
|
400 |
80 |
80 |
515 |
1562 |
402 |
16-M22 |
400 |
|
450 |
90 |
90 |
565 |
1750 |
452 |
20-M22 |
450 |
|
500 |
90 |
90 |
620 |
1994 |
502 |
20-M22 |
500 |
|
600 |
100 |
100 |
725 |
2040 |
603 |
20-M27 |
600 |
Body testing and seal testing
1､Media in body testing and seal testing of gate valves are water(with antiseptic agent),kerosene or other appropriate liquids with viscosity not greater than water.
2､To gate valves with non-metal seals,boys testing and seal testing shall be in accordance with GB/T13927-92 D standard
3､To gate valves with metal seals,when requirements on sealing performance is available,leakage in seal testing shall be calculated in 1×DBmm3,when no requirements on sealing performance is available,this testing is allowed to be omitted.
4､To gate valves with electric actuators,hydraulic actuators and pneumatic actuators,when closing position is determined,close for 3 times,to carry out body testing and seal testing according to the requirements in clause 1 and claues 3.
5､Cleanness of gate valves shall be in accordance with JB/T7748 standard.
6､Static pressure life testing.
7､Cycles of static pressure life testing shall be in accordance with regulations,and other technical requirements shall be in accordance with JB/Z234 standard.
|
Cycles of static pressure life testing |
Metal seal |
DN≤150mm |
1200次 |
|
DN≤200-400mm |
1000次 |
||
|
DN≤450mm |
800次 |
||
|
Non-metal seal |
DN≤150mm |
1400次 |
|
|
DN≤200-400mm |
1200次 |
||
|
DN≤450mm |
1000次 |
