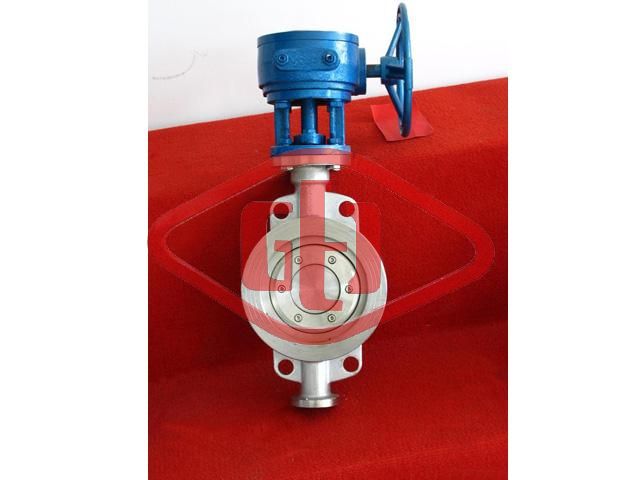

Products Name: Hard seal wafer butterfly valve

Product Catalog: Butterfly Valve

OnLine Service:

Print this Page	Bookmark this
Skype Online	E-mail Us
Live Messenger	PDF Download

【Prev Products】	【Next Products】

Description	Send Inquiry

D973-(6､10)C､P､R､V series Wafer

Nominal Bore DN	out-form dimensions					Connection size
	L	H	D973H			PN0.6MPa		PN1.0MPa
	L	H	H3	A3	B3	D1	Z-d	D1	Z-d
50	43	112	530	250	255	110	4-14	125	4-18
65	46	115	550	250	255	130	4-14	145	4-18
80	64	120	565	250	255	150	4-18	160	8-18
100	64	138	600	250	255	170	8-18	180	8-18
125	70	164	640	250	255	200	8-18	210	8-18
150	76	175	705	300	315	225	8-18	240	8-22
200	89	208	775	300	315	280	12-18	295	8-22
250	114	243	945	300	315	335	12-22	350	12-22
300	114	283	1070	300	315	395	12-22	400	12-22
350	127	310	1140	300	315	445	16-22	460	16-22
400	140	340	1210	300	315	495	16-22	515	16-26
450	152	380	1335	575	714	550	16-22	565	20-26
500	152	410	1415	575	714	600	20-22	620	20-26
600	178	470	1605	656	810	705	20-26	725	20-30
700	229	550	1844	656	810	810	24-26	840	24-30
800	241	640	2040	656	810	902	24-30	950	24-33
900 241	710	2255	785	863	1020	24-30	1050	28-33
1000	300	770	2380	785	863	1120	28-30	1160	28-36
1200	360	890	2640	785	863	1340	32-33	1380	32-39

D973-(16､25)C､P､R､V series Wafer

Nominal Bore DN	out-form dimensions					Connection size
	L	H	D973H			PN1.6MPa		PN2.5MPa
	L	H	H3	A3	B3	D1	Z-d	D1	Z-d
50	43	112	530	250	255	125	4-18	125	4-18
65	46	115	550	250	255	145	4-18	145	8-18
80	49	120	565	250	255	160	8-18	160	8-18
100	56	138	600	250	255	180	8-18	190	8-22
125	64	164	640	250	255	210	8-18	220	8-26
150	70	175	705	300	315	240	8-22	250	8-26
200	71	208	775	300	315	295	12-22	310	12-26
250	76	243	945	300	315	335	12-26	370	12-30
300	83	283	1070	300	315	410	12-26	430	16-30
350	92	310	1140	300	315	470	16-26	490	16-33
400	102	340	1210	300	315	525	16-30	550	16-36
450	114	380	1335	575	714	585	20-30	600	20-36
500	127	410	1415	575	714	650	20-33	660	20-36
600	154	470	1605	656	810	770	20-36	770	20-39
700	165	550	1844	656	810	840	24-36	875	24-42
800	190	640	2040	656	810	950	24-39	990	24-48
900	203	710	2255	785	863	1050	28-39	1090	28-48
1000	216	770	2380	785	863	1170	28-42	1210	28-56
1200	254	890	2640	785	863	1390	32-48	1420	32-56

D973-(40)C､P､R､VV series Wafer

Nominal Bore DN	out-form dimensions					Connection size
	L	H	D973H			PN4.OMPa
	L	H	H3	A3	B3	D1	Z-d
50	43	112	530	250	255	125	4-18
65	46	115	550	250	255	145	8-18
80	49	120	565	250	255	160	8-18
100	56	138	600	250	255	190	8-22
125	64	164	640	250	255	220	8-26
150	70	175	705	300	315	250	8-26
200	71	208	775	300	315	320	12-30
250	76	243	945	300	315	385	12-33
300	83	283	1070	300	315	450	16-33
350	92	310	1140	300	315	510	16-36
400	102	340	1210	300	315	585	16-39
450	114	380	1335	575	714	610	20-39
500	127	410	1415	575	714	670	20-42
