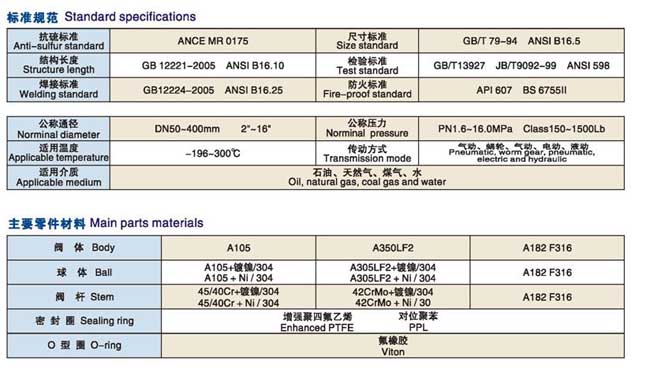

Anti-Sulphuric standard : ANCE MR 0175

Dimension standard : GB/T 79-94, ANSI B16. 5

Face to Face : GB 12221-2005 ANSI B16. 10

Test and check : GB/T 13927 JB/T9092 ANSI 598

Connection End : GB12224-2005 ANSI B16. 25

2. Size : DN50-400mm And 2'-16' Inch

3. Nominal Pressure : PN1. 6-16. 0MPa, Class 150-1500Lb

4. Applicable temperature : -193~300 ℃

5. Applicable medium : Water, oil products, nitrogen, ammonia, Hydrogen, and liquefied gas, etc.

6. Material : Body : A105, A350 LF2, A182 F316 sealing : RTFE, PPL
