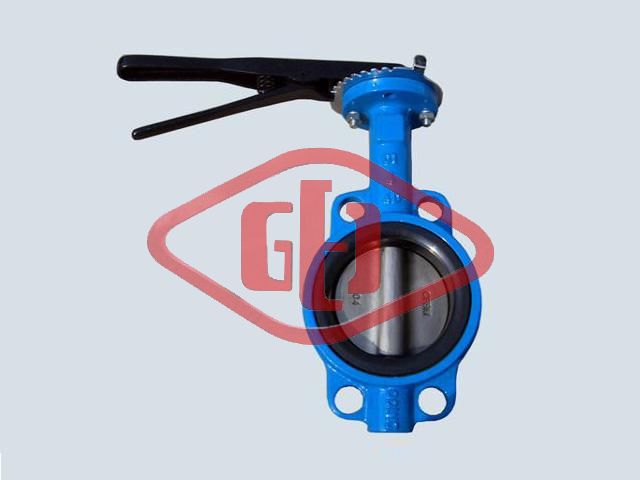

Wafer or lug body style fit between FF or RF flanges.
PTFE bushing ensure the maximum shaft support and certralized alignment.
360 degree polished disc assures positive on-off
Edge-Boot Seat,it is new type in market .can reduce the torque also fit various flanges,easy to replaceable.
Universal ISO5211 mounting pad,can suit for all kinds of actuators such as handles,gear box,electric actuater and pneumatic actuators
Round with key,square and double "D"of Stem configuration are for you selection
Technical data
|
Size |
DN50-DN300 |
|
General Design |
API 609 |
|
Mounting Pad |
ISO 5211 |
|
Face to Face |
API 609; EN 558 1-20 series |
|
Flange Driling |
DIN 2501 PN10/PN16 |
|
Inspection and Test |
API 598 |
Specifications
Outline and connecting measurement: price ci ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve ci wafer butterfly valve
|
Size |
A |
B |
L |
D |
E |
F |
G |
K |
|
50 |
161 |
80 |
43 |
32 |
12.6 |
6.7 |
50 |
65 |
|
65 |
175 |
89 |
46 |
32 |
12.6 |
6.7 |
50 |
65 |
|
80 |
181 |
95 |
46 |
32 |
12.6 |
6.7 |
50 |
65 |
|
100 |
200 |
114 |
52 |
32 |
15.77 |
10.3 |
70 |
90 |
|
125 |
213 |
127 |
56 |
32 |
18.92 |
10.3 |
70 |
90 |
|
150 |
226 |
139 |
56 |
32 |
18.92 |
10.3 |
70 |
90 |
|
200 |
260 |
175 |
60 |
40 |
22.10 |
14.3 |
102 |
125 |
|
250 |
292 |
203 |
68 |
40 |
28.45 |
14.3 |
102 |
125 |
|
300 |
337 |
242 |
78 |
40 |
31.6 |
14.3 |
102 |
125 |
|
350 |
368 |
267 |
78 |
40 |
31.6 |
14.3 |
125 |
150 |
|
400 |
400 |
298 |
102 |
51.2 |
33.15 |
20.6 |
140 |
175 |
|
450 |
422 |
318 |
114 |
51.2 |
38.00 |
20.6 |
140 |
175 |
|
500 |
480 |
249 |
127 |
64.2 |
41.15 |
20.6 |
140 |
175 |
|
600 |
562 |
440 |
154 |
70.2 |
50.65 |
23.2 |
165 |
210 |
|
700 |
624 |
520 |
163 |
66 |
55.00 |
8-18 |
254 |
300 |
|
800 |
672 |
591 |
188 |
66 |
55.00 |
8-18 |
254 |
300 |
Material
|
parts |
description |
material |
specification |
|
1 |
Body |
Cast Iron |
A 126 Class B |
|
2 |
Bushing |
PTFE |
|
|
3 |
O ring |
EPDM |
|
|
4 |
Shaft |
Stainless steel |
AISI 316 |
|
5 |
Disc |
Stainless steel |
A351 CF8M |
|
6 |
Seat |
PTFE |
|
